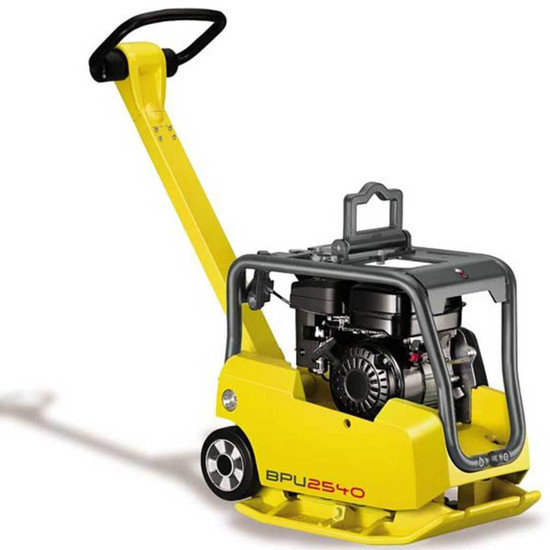

Wacker Neuson BPU 2540A Reversible Vibratory Plate

Features

• Reliable vibratory plates offer maximum mobility
• Versatile reversible plates ideal for compaction of interlocking paving stones, trenches, landscaping and maintenance
• The only plates with a durable, integrated wheel set that provides for maximum built-in mobility
• The unique, integrated wheel set simplifies the task of moving a reversible plate around the showroom, shop floor and job site
• An adjustable guide handle can be locked into a vertical position for easy transport and storage
• Heavy-duty frame features a central lifting point for easy on/off loading and placement of plate into trenches
• Tough ductile iron base-plate is extremely durable even under extreme conditions and provides for long service life
• Specially designed shock-mount system offers a virtually vibration-free guide handle for increased operator comfort and reduced operator fatigue

Technical Data

• Operating weight  309 lbs | 140 kg
• Working width 15.8 in
• Machine height 25.5 in
• Working height of handle (adjustable) 31.5 – 45.0 in
• Base plate thickness 0.4 in
• Max. centrifugal force 5.625 lbs
• Vibration frequency 90 Hz
• Max. forward and reverse travel 68.9 ft/min
• Gradeability up to 30%
• Compacted area (depending on soil) 5.425ft2/h
• Drive engine Honda Gas
• Air-cooled, 4-cycle, single cylinder
• Max. power output (@3600 rpm) 5.5 hp
• Rated power output (@2800 rpm) 2.0 hp
• Run Time 4.75 hr
• Tank capacity 3.9 US qt
• Max. allowable tilt of engine in continuous operation 20°
